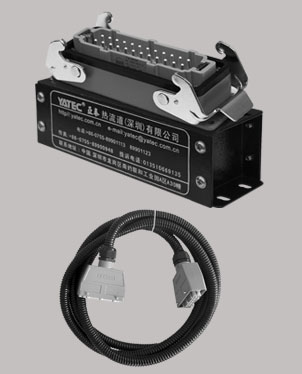

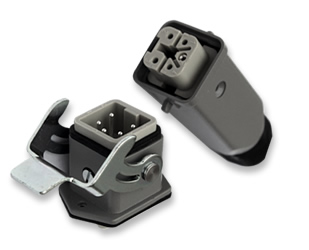

Heavy load industrial connector
If you want to make a good start, obviously there is no existing solutions. YATEC? hot runner system could provide you with the most flexible injection manner. Our product is supported by a complete moulding solution, includes mould engineering drawings,moreover, we could test all the accessories as well before deliver products to you，it's only to make sure you will get a perfect product. every hot runner system manufacturing are customized for you. We hope we will have long time cooperationship.
Yatec temperature controller with fine technology offers customer a better technical support
specification：
The soft-core technology parameters:
working voltage: 400V
Working current, 16A
Flame retardant grade（ according to the UL94) : V0
Connection: the pressure of the self-contained nails (0.5-4.0mm)
Shell technology parameters:
Level of pollution: 3 (C)
Protection grade: IP65
the base cable entry thread : PG16 / PG21
YATEC unique technology
· Hot nozzle minimum diameter can reach to 13 mm
· Distance between hot nozzles can reach to 20 mm
· Distance between needle valve nozzles can 60mm
· The shortest Hot nozzle could achieve to 15 mm only
· The longest Hot nozzle could achieve to 800 mm
|
|
|
| |
Hot runner datasheet download |
|
|
|
|
|
|
|
Hot nozzle datasheet
manifold datasheet
temperature controller datasheet
Heavy duty industrial connector datasheet
YATEC®Infomation
For more details please contact us ! |
|
|
|
|
|
|
|
Please use ADOBE READER software |
|
|
|
|
|
Hot runner system
Temperature controller and TC
Heavy duty industrial connector
Features：

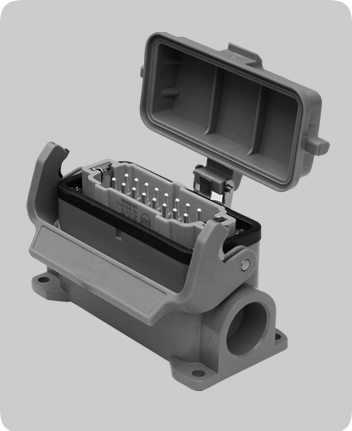

1，YATEC®overloading connector with IP65, IP68 different grade protection housing, can be applied in different occasions.
2, the standard IP65 hard housing can withstand mechanical collision, extruding, content with different working environment.
3, stainless steel lock configuration and IP68 hight protection housing, could work under hyperhaline, highlyacid surrounding, make your production runs smoothly.
|
|
